    Skiff Workshop Cage Bearings - Pivot: 5mm - Ceramic Bearings: 1/16" - 12 ball

    Thumbnail Filmstrip of Skiff Workshop Cage Bearings - Pivot: 5mm - Ceramic Bearings: 1/16" - 12 ball Images

      Purchase Skiff Workshop Cage Bearings - Pivot: 5mm - Ceramic Bearings: 1/16" - 12 ball

      Skiff Workshop Cage Bearings - Pivot: 5mm - Ceramic Bearings: 1/16" - 12 ball

      Manufacturer SKU: AC-SKF-3-5MM-12-116

      $14.00

      12 available for purchase

      Skiff Workshop Cage Bearings - Pivot: 5mm - Ceramic Bearings: 1/16" - 12 ball

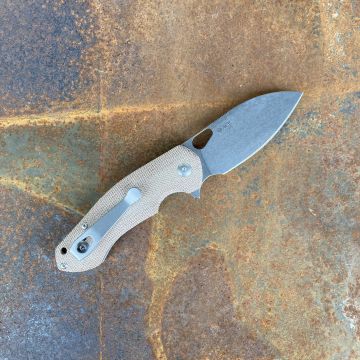

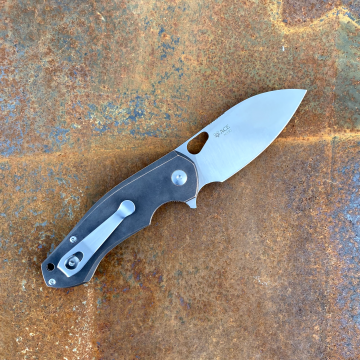

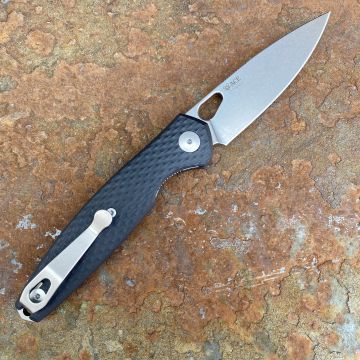

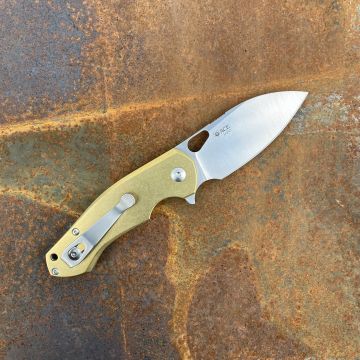

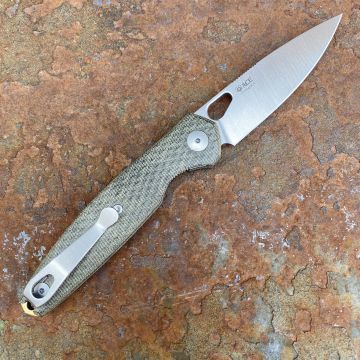

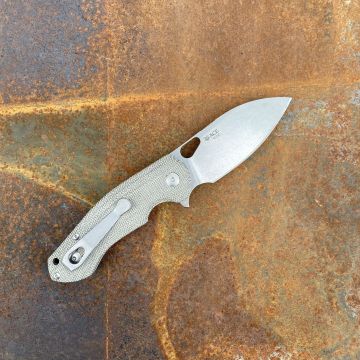

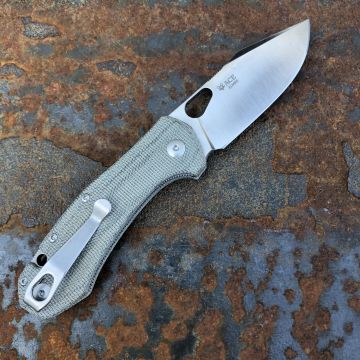

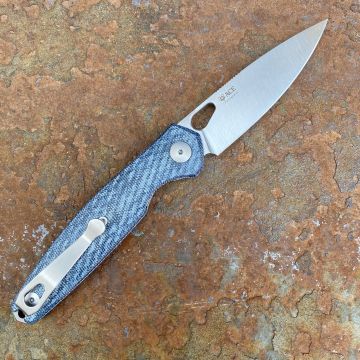

      These cage bearings are compatible with many Import Knives like GiantMouse Biblio, Biblio XL, Tribeca, Jutland, RIV, Reo and Atelier, as well as the Civivi Elementum (non-button lock). Click Compatibility tab for more info.

      PLEASE NOTE: Modifying your knife may void the OEM warranty on your knife. Please check the manufacturer's warranty for the knife that you will be modifying. By purchasing these cage bearings, you acknowledge this possibility, and that LynchNW or SKiff Workshop are not liable for any damage to your folding knife that may occur during installation of these bearings.

      Cage bearings that allow more balls to be placed around the knife pivot than standard cage bearings. Which provides more support for the blade and decreasing stress on each ball. The ceramic balls are captured in the disc but are still free floating to prevent binding.

      Includes Grade 5 ceramic bearings pre-installed.

      • 22% increased blade support over caged bearings of same size
      • Improved ball pathing around pivot
      • Less pivot screw tightening required
      • CNC machined from solid phosphor bronze

      Dimensions

      Inner Diameter
      Outer Diameter
      Thickness Ball
      0.200" 0.370" 0.050" 0.0625"
      5.08mm 9.398mm 1.27mm 1.587mm












      Ordering details

      • One set equals two individual cage bearings


      Specifications

      Additional Installation and Maintenance Info from Skiff Workshop:

      The amount of torque needed for each knife's pivot when installing these bearings  is entirely by feel. You should start off lightly and test the blade, then tighten a little more, retest the blade. Repeat that until you are happy with the action. If you are using the 8mm x 1/16" bearings then you would need less torque when tightening the pivot since there are more balls to spread the load.

      For cleaning, you can use some light ammonia free de-greaser. Simple Green or even Windex should be fine. If you use a de-greaser then you should apply a drop of oil to each cage when installing. You can use compressed air to clean out the bearings. If the compressed air is too strong you may need to push some of the balls back to center if they become stuck on one side.

      Compatibility

      Bearing Compatibility

      The below knives have been found to work with this bearing.

      Click here to view the full Skiff Workshop compatibility chart.

      A. Purvis
      • Progeny v3
      Alliance Designs
      • Bangarang
      • Kraken
      Anso
      • Aros
      Arcane Design
      • Crawler
      • Crypt
      • Plexus (Isham)
      • Preytheon
      • Vult
      Artisan
      • Ahab
      • Arion
      • Arion (Micarta)
      • Great White (Gavko)
      • Satyr
      Asher Knife Co.
      • Spiro (G10/CF)
      • Spiro (Liner Lock)
      Berg Blades
      • Iron Pup
      • Mini Barber
      • Mini Slim
      • Mini Sweeney
      • Slim
      • Sweeney
      Bestech
      • Syntax
      • Tonic
      Bridgeport Knife Co.
      • 395 v1/v2
      Brown Knives
      • LHC-X v2
      Bull (WE)
      • Shamwari (Production)
      Buck
      • Haxby
      Caelum Blade Design
      • Ari
      Cavol Knives
      • Denka
      Cheburkov
      • Large Strizh
      Civivi
      • Badlands Vagabond
      • Baklash
      • Brazen
      • Brigand
      • Cachet
      • Chevalier
      • Cogent
      • Conspirator
      • Elementum (Not Button Lock)
      • Imperium
      • Incite
      • Odium
      • Ortis
      • Perf
      • Praxis
      • Relic
      • Riffle
      • Savant
      • Sokoke
      • Synergy 3
      • Starflare
      • Vision FG
      • Voltaic
      • Feldspar (Large)
      CKF
      • Fif20
      CMF
      • Mistress R v2 Proto
      CRKT
      • Caligo
      • Fossil
      • Panache
      Crispy Donut Community (CDC)
      • Chicago
      Damned Designs
      • Yokai
      Divo
      • Buzz
      • Growler v2
      • Mash v1
      • Mash v2
      • Mash v2.5
      • Nip
      • Pony Stout
      • Stout v1
      • Stout v2
      Dutch Blade Works
      • Xerxes
      EMP EDC
      • Nimble X v1
      • Nimble X v2
      • Relative
      Eutektik
      • EFD
      • Trinity
      Ferrum Forge (Drop)
      • Buc
      • Crux
      • DAO
      • Gent
      Ferrum Forge
      • Archbishop 3.0
      • Exec
      • Mini Archbishop
      • Stinger (Liner Lock)
      Finch Knife Co.
      • Runtly
      Fox Knives
      • Chillin
      • Suru
      • Vox Core Mini
      • Yaru
      Freeman Knives
      • Voodoo
      Ganzo
      • FH41
      • FH81
      • FB727S
      Gavko (Drop)
      • Nurse
      • Thresher
      GiantMouse
      • ACE Atelier
      • ACE Biblio
      • ACE Biblio XL
      • ACE Jutland
      • ACE Nibbler
      • ACE Reo
      • ACE RIV
      • ACE Sonoma v1
      • ACE Sonoma v2
      • ACE Tribeca
      • GM9
      Golden Designworks
      • Standard

      Griffin Knife Co
      • Scout
      Harnds
      • Assassin
      Homer Zhu
      • Hero
      JI Knives
      • Fuse
      Kansept
      • Goblin
      Kaviso (Laconico)
      • Keen
      Kershaw
      • Highball
      Kizer
      • Clutch
      • Feist XL
      • Gemini (Micarta)
      Krudo
      • Krona
      Kubey
      • KU158 Flash
      • KU321
      Lionsteel
      • TRE (not G10)

      LTK (LuvThemKnives)
      • Rezult

      LUFT Concepts
      • AVNT
      Miguron
      • Dromos
      • Mero
      • Velona
      MKM
      • Clap
      • Isonzo
      Monterey Bay Knives
      • Rosalinda
      Null Knives
      • Raiden
      • Raikou
      Ochs Worx
      • Solarstorm
      Ohlone Knives
      • GOAT
      Olamic
      • Wayfarer 247
      • Whippersnapper
      Pena
      • X-Series Bravo
      • X-Series Mula
      Petrified Fish
      • Mini Beluga
      • Nightingale
      • PF818
      QSP
      • Hawk
      • Leopard
      • Rhino
      Quiet Carry
      • IQ-L
      Reate
      • Bushido
      • Mini Cypher
      • Tribute
      Richard Rogers
      • OEM Slim
      Schrade (USA Made)
      • Radok
      Sencut
      • Kyril
      • Neches
      • Mims
      • Sachse
      • Serene
      • Snap
      SMKE
      • Scout
      Smoke
      • Arius
      Smoky Mountain Knife Works
      • Case Marilla
      Something Obscene Co.
      • J-Cape
      Spartan Knives
      • Metis
      Steel Will
      • Mini Cutjack (M390)
      Tempest Knives
      • Jetstream
      • Micro-burst
      • Pinion
      Trivisa
      • Lynx-03 (14C28N)
      Tuyaknife
      • Envy v2
      • Envy v4
      • Hive v3
      • Kostoba
      Uncovsky
      • Dark Series
      T.W. Price
      • Dawn v1
      • Dawn v2
      Urban EDC
      • F5.5
      • Light Compact (LC)
      Varga Knives
      • VBR 3.25"
      Vero Engineering
      • Axon (FL)
      • Axon (LL)
      • Impulse Mini
      • Mini Axon (framelock)
      • Synapse
      • Synapse Mini
      • Synapse XL
      Viper Knives
      • Fortis
      WE Knives
      • Beacon
      • Big Banter
      • Culex (button lock)
      • Deacon
      • Double Helix
      • Elementum
      • Euquivik
      • Evoke
      • Exciton
      • Fornix
      • High-Fin
      • Hyperactive
      • Kitefin
      • Magnetron
      • Makani
      • Malice
      • Miscreant
      • Nefaris
      • Nexusia
      • Nitro Mini
      • OAO
      • Orpheus
      • Practic
      • Primoris
      • Quixotic
      • Reiver
      • Roxi 3
      • Saakshi
      • Seer
      • Shakan
      • SNECX Vision R
      • Snick
      • Subjagator
      • Swordfin (Meades)
      • Trogon
      • Thug XL
      Wingman EDC
      • Mach 1
      • Mach 3
      Winter Blade
      • Factor
      Zieba
      • S1 Mini
      • S2 Mini
      ZT (Zero Tolerance)
      • 0462
